Product Description

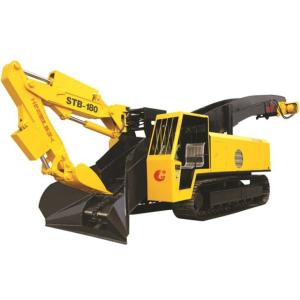

-The Underground Gold Mining Loader is the practical equipment which combines moving, digging, collecting, loading and conveying together. It is professionally designed for gold mining, which is also suitable for the coal mining and other mining industry.
-Adopting the electric power full-hydraulic drive system, Underground Gold Mining Loader can not only provide the silent operation with stable performance, but also it is capable of improving the working efficiency with high output, making it cost effective.
-In order to prolong its service life, Underground Gold Mining Loader adopts the superior alloy steel to make sure that it has sturdy frame to support the machine with stable operation. And it has good treatment with smooth surface, providing the comfortable using experience, that it is resistant to corrosion, water and dust.
-With scientific and ergonomic design, it is convenient to use with easy operation that one person is enough to handle with the equipment after the professional training.
-Produced with strict requirements, the Underground Gold Mining Loader is of premium quality which is able to meet the international standards that it is widely accepted by customers.
|
Technical Data
|
|
Excavating Width(mm)
|
6500
|
|
Excavating Length(mm)
|
2800
|
|
Excavating Height(mm)
|
4400
|
|
Excavating Depth(mm)
|
800
|
|
Unloading Height(mm)
|
2693
|
|
Minimum Loading Height(mm)
|
1700
|
|
Unloading Distance(mm)
|
3500
|
|
Maximum Rotation Angle(°)
|
±50
|
|
Weight(T)
|
18.6
|
|
Dimension(mm)
|
13088x2350x2600
|
|
Loading Capacity(m³/hour)
|
180
|
|
Min Turning Radius(mm)
|
12000
|
|
Climbing Ability(°)
|
≤25(hard ground)
|
|
Travelling Speed(m/min)
|
0.5
|
|
Applied Tunnel Gradient(°)
|
≤20
|
|
Motor Power(kw)
|
55
|
|
Maximum Material By Size(LxWxH) (mm)
|
800x780x800
|
|
Ground Clearance(mm)
|
380
|
|
Applied Working Section(W*H) (m)
|
≥3.8x3.8
|
|
Nominal Working Pressure(Mpa)
|
25
|
